Ivium Vertex Range

Both Vertex

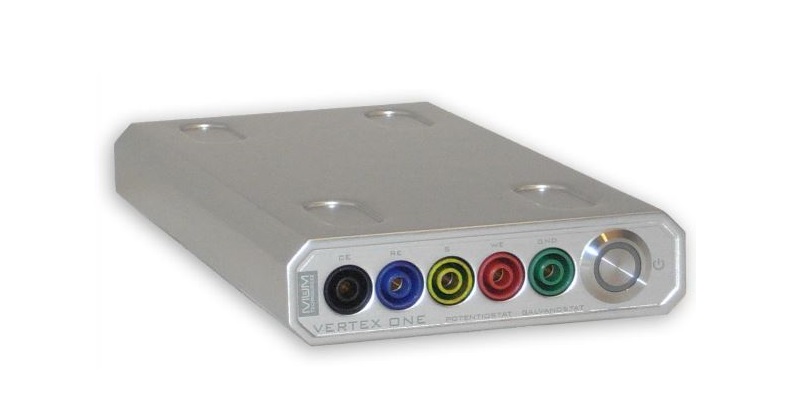

vertexone

The Vertex range offers an affordable solution for those looking for a potentiostat/galvanostat with optional FRA/EIS and optional I/O port. The price point and features make the Vertex range ideal for applications in education and applied electrochemistry. Vertex is supported by and supplied with Ivium's powerful control and data processing software IviumSoft (for Windows based PC's).



Key Vertex Specifications

  • 8 current ranges: 10nA to 100mA (1A, 10A model dependant)
  • WE/RE/S/CE 4-electrode configuration
  • Floating operation
  • Date aquisition rate of 100kHz
  • Optional FRA/EIS: 10µHz to 1MHz

Wide application range

The robust design, high current ranges (up to 10A depending on the model), floating operation and the availability of a wide range of electrochemical techniques make the Vertex ideal for a variety of applications, including:

  • Education
  • Routine electrochemistry and analysis
  • Battery and fuel cell testing / analysis
  • Corrosion
  • Sensors
  • Biotechnology



 Vertex.ONEVertex.100mA.DCVertex.1A.DCVertex.5A.DCVertex.10A.DCVertex.2A.DC
Current Compliance±100mA±100mA±1A±5A±10A±2A
Voltage Compliance± 22V± 10 V±10V±10V±10V±20V
Applied Potential Range±10V, at 0.333mV resolution±10 V, with 0.333mV resolution±10 V, with 0.333mV resolution±10 V, with 0.333mV resolution±10 V, with 0.333mV resolution±20V, 0,667mV resolution
Weight500g1.5kg1.5kg2kg3kg2kg
Optional EISYes 10µHz to 250kHzYes 10µHz to 1MHzYes 10µHz to 1MHzYes 10µHz to 1MHzYes 10µHz to 1MHzYes 10µHz to 1MHz



  • NEW - Optional True Linear Scan
  • Optional EIS / FRA from 10µHz to 1MHz available on all models
  • Additional I/O via optional Peripheral Port





See Ivium's full Product Brochure for more information on the Vertex Potentiostat.
