850 Fuel Test System

NEW IN 2020:

  • Direct USB Connection
  • Internal Auto Humidifier Drain/Fill Option for rapid dew-point reduction
  • Updated 881 Impedance Analyzer with higher frequency capability.
  • New 885 P/GStat with EIS
  • Voltage & Current control modes – Constant, Scanning & Step-Stair

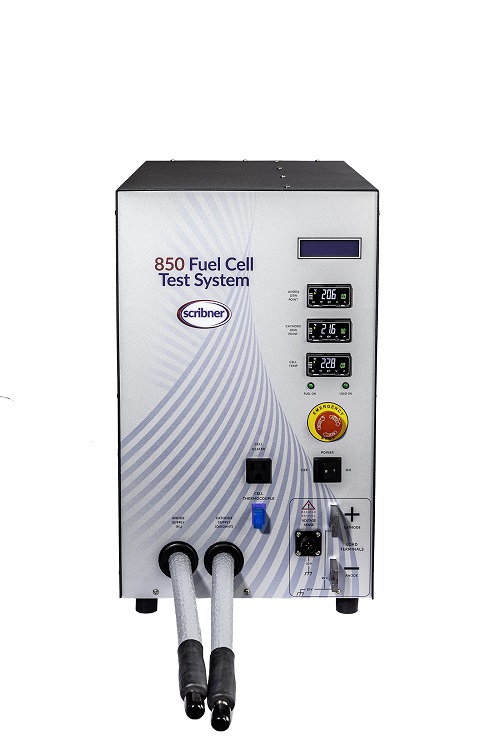

The model 850 Multi-Range Fuel Cell Test System is a complete test station for operation and measurement of PEM/DMFC fuel cells.  The 850 is ideal for single-cell and short-stack fuel cell research and university programs.

The 850 combines a computer-controlled instrument with fuel handling hardware in an integrated bench-top unit. The 850 uses the proven 890 as the basis for the electronic load design. The powerful FuelCell® software package is included for controlling station operation.

Need more power? Consider the 840 Fuel Cell Test System with up to 1 kW / 500 A.

  • Multiple current range electronic load choices: 5/25/50 A or 10/50/100 A, 100 W, 20 V
  • Suitable for up to 50 cm2 PEM cells.
  • FuelCell ® software for user-friendly computer controlled cell operation & experimentation
  • Temperature controlled high performance 316L stainless steel humidifiers, and heated gas transfer lines
  • Computer control of anode and cathode mass flow rates
  • Automatic control of N2 purge gas to cell
  • Detection of pressure loss for reactant and purge gasses
  • Current, voltage or power control modes
  • Continuous real time cell resistance and IR-free voltage measurement by Current Interrupt
  • Whole cell voltage plus two high-impedance reference inputs for half-cell data
  • Cell main terminals and sense inputs tolerant of a non-isolated cell
  • Automatic Water Fill for humidifiers
  • Safety features include detection of alarm conditions and automatic hardware
