Photo-Electrochemical H-Cell Setup

Choose between four versions:

  • Aqueous Electrolyte experiment Magnetic Mount – C011A
  • Organic Solvent Based Electrolyte experiment Magnetic Mount – C011B
  • Aqueous Electrolyte experiment Screw Mount – C011C
  • Organic Solvent Based Electrolyte experiment Screw Mount – C011D

Description:

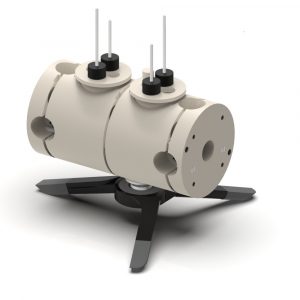

This is a horizontally mounted, double compartment photo-electrochemical H-Cell used to investigate thin film photo-anodes and cathodes. The cells are made of PEEK. It well fits aqueous (EPDM O-Rings) and organic solvent (FFKM O-Rings) electrolyte requirements. The cell is gas-tight having two seperate chambers, each with gas inlet and outlet. This allows bubbling and solution and evacuating gases. The chambers are seperated with ion-exchange membrane, this allows for electrochemical products to appear at photo-anode and cathode to not affect the opposite electrode.

Specifications:

Nominal exposure area 1 cm2
Minimum electrolyte volume 2x10 mL
Maximum electrolyte volume 2x15 mL
Electrode plug diameter 6 mm
Recommended substrate size 25 mm x 25 mm
Maximum substrate thickness 3 mm

Instrument:

This product includes:

  • 2 x lid
  • 2 x chamber
  • 2 x sample mount
  • 1 x micro tripod
  • 4 x plug
