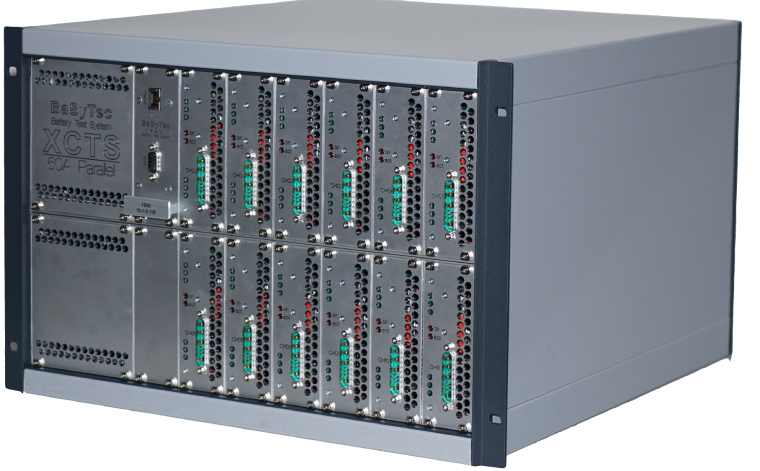

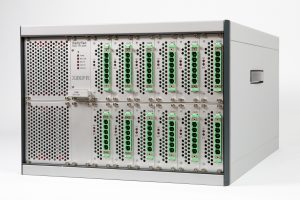

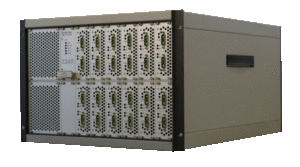

BaSyTec XCTS Mk2 Series

The XCTS cell test and formation system from BaSyTec is a cost effective, modular solution for the testing and formation of large numbers of cells. Parallel operation to 400A. Energy recovery / mains regeneration reduces heat, size and running costs.

Like all BaSyTec systems the system hardware is programmed using BaSyTest software. Once the program is running the PC can be disconnected (intentionally or not) and the system will continue to operate and collect data using internal buffers on each channel. The system can run for prolonged periods in this way and is only limited by the amount of data being collected. All data is automatically synchronised back to the PC once a connection is re-established.

XCTS 40A – Specification

  • Maximum current/ch: 40A
  • Parallel to 80A
  • Channels per unit: 8 or 20
  • Voltage range: 0-6V
  • Voltage precision: 1mV
  • Voltage resolution: 0.1mV
  • Min. discharge voltage: 1V
  • Current precision: 10mA to 20A; 20mA to 40A
  • Current resolution: 1mA

XCTS 60A – Specification

  • Maximum current/ch: 60A
  • Optional Parallel to 300A
  • Channels per unit: 5 or 12
  • Voltage range: 0-6V
  • Voltage precision: 1mV
  • Voltage resolution: 0.1mV
  • Min. discharge voltage: 1V
  • Current precision: 1mA to 1.5A; 10mA to 20A; 30mA to 60A
  • Current resolution: 0.05mA

XCTS 80A – Specification

  • Maximum current/ch: 80A
  • Optional Parallel to 400A
  • Channels per unit: 4 or 10
  • Voltage range: 0-6V
  • Voltage precision: 1mV
  • Voltage resolution: 0.1mV
  • Min. discharge voltage: 1V
  • Current precision: 10mA to 20A; 20mA to 40A; 40mA to 80A
  • Current resolution: 1mA
