PAT-Stand-16 description

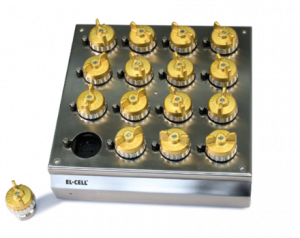

The PAT-Stand-16 is the docking station for up to 16 PAT-Cells in 4 x 4 matrix. The PAT-Stand-16 has a built-in data logger recording full and half cell voltages, cell current, tray temperature and time. The PAT-Stand-16 can be connected permanently to a usual multi-channel potentiostats (such as those from Biologic or Ivium) or battery testers (like the Maccor or BaSyTec).

This way, the PAT-Stand-16 saves wiring effort, because it is not necessary to renew the connection of cell and potentiostat for every battery test. The PAT-Stand-16 fits nicely into a usual climate chamber (for example Binder KB53), which saves space in the lab.

All these features make the PAT-Stand-16 with the PAT-Cells the optimal solution for high throughput battery testing.

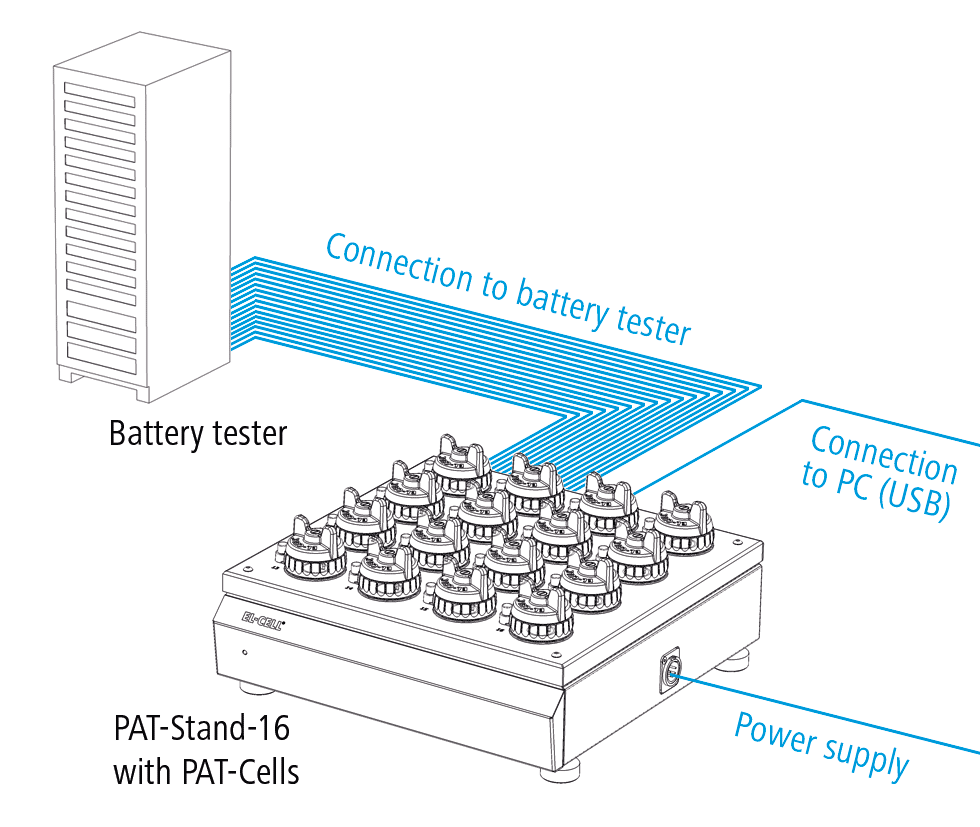

Schematic view of a connected PAT-Stand-16 setup

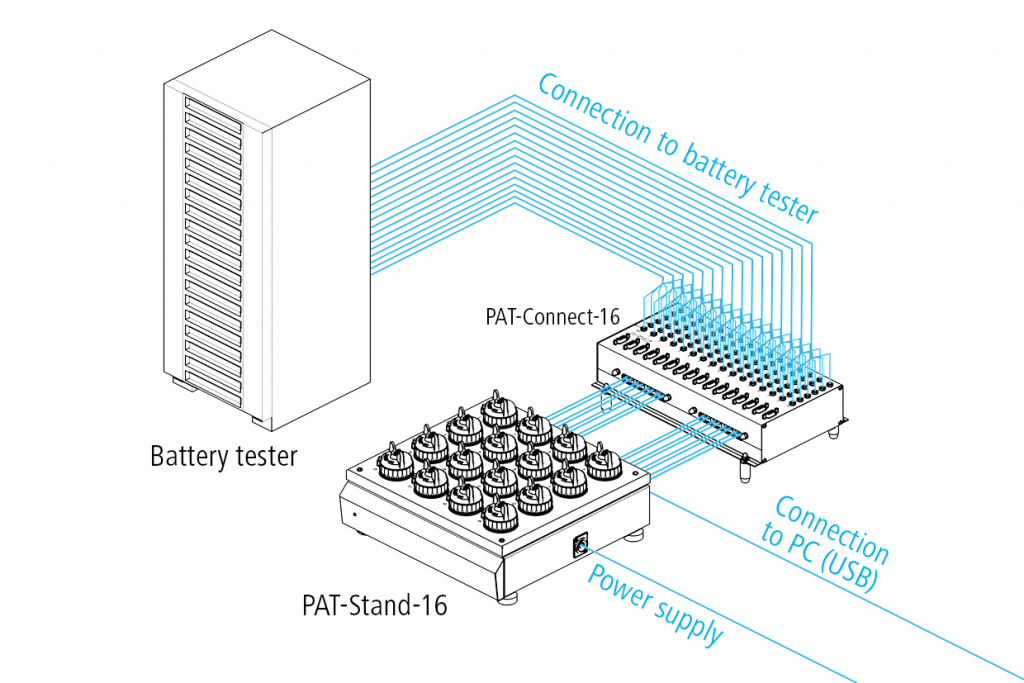

Schematic a PAT-Stand-16 with PAT-Connect-16 for flexible wiring

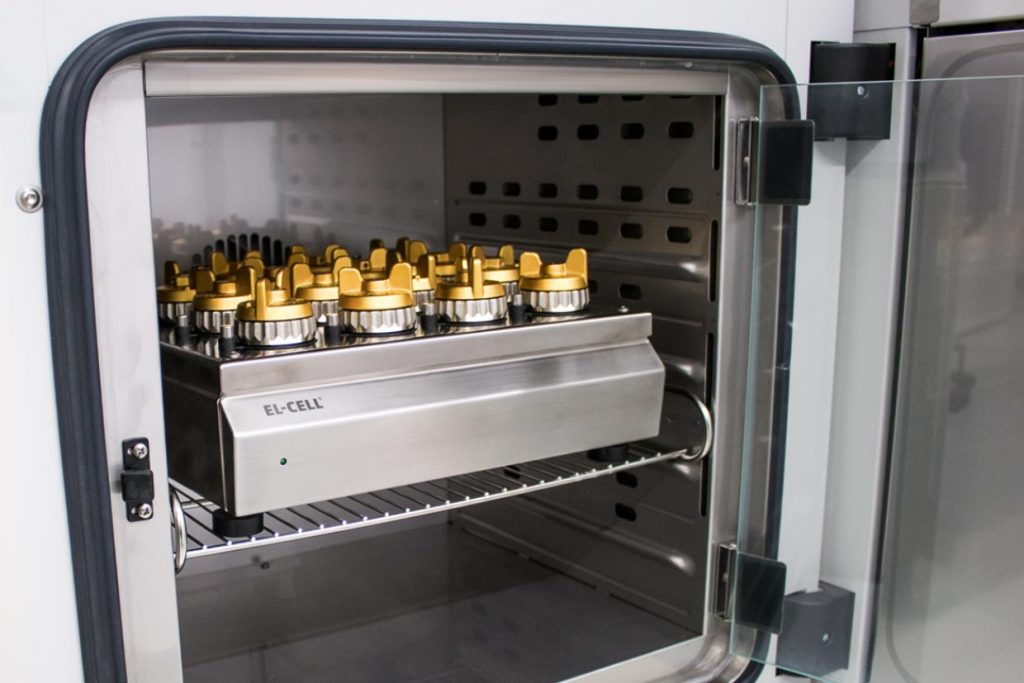

Testing with the PAT-Stand-16. The PAT-Stand-16 fits nicely into usual climate chambers.

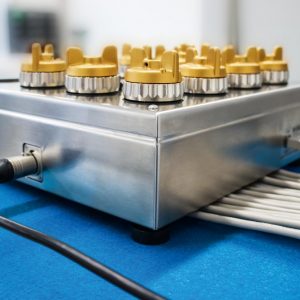

The PAT-Stand-16 can be left permanently connected to a multichannel potentiostat. There is no need for connecting cables each time a new test is started.

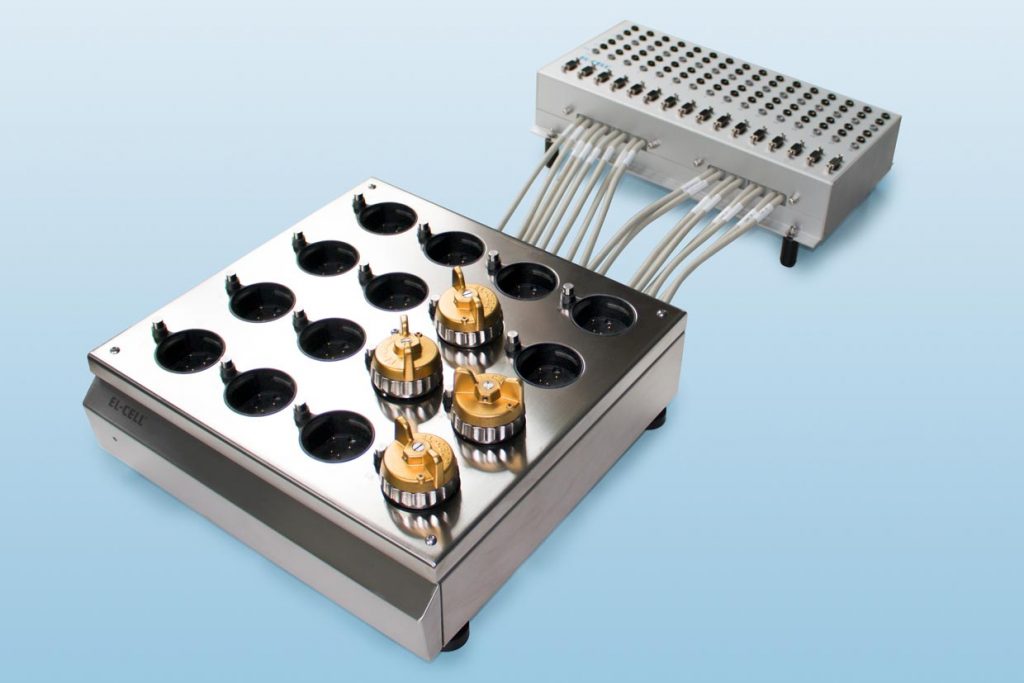

PAT-Stand-16 connected to a PAT-Connect-16
