H-Cell Kit
**NEW AND IMPROVED
The H-Cell is designed for membrane and separator characterization in a liquid environment. Measure resistance, conductivity, permeability, cross-over, and selectivity.

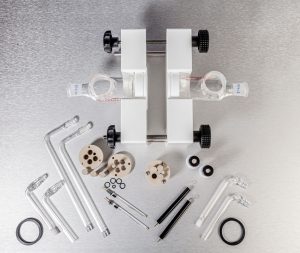

The H-Cell Kit includes two (x2) each of the following:
- Glass half-cell
- PEEK cap assembly with O-rings and plugs
- Luggin tube with Teflon mount
- Inlet with frit and outlet tube
- PET Cell Holder and Clamp
- Low Profile Silver/Silver Chloride Gel Reference Electrodes
- Pt wire coil CE/WE/Drive Electrodes
- Other Reference and Drive Electrodes types subject to availability

Features
- Small volume, easy-to-use, robust design
- Non-reactive materials of construction
- Pt or Au CE/WE electrodes
- Selection of reference electrode types
- Adjustable Luggin probes
- Ports for purge gas & temperature sensor.
Specifications
Property | |
---|---|
a. | ½ cell volume ~ 30 mL |
b. | ID at cell face = 3.0 cm, Area at cell face or exposed membrane ~ 7.07 cm2 |
c. | Assembled dimensions: |
Length = 24-35 cm depending on position of Luggin probes | |
Height = 10 cm (excluding cap and electrodes) | |
Width = 10 cm | |
d. | Provision for gas purge/vent and temperature probe |
e. | Movable luggin probe |
Electrodes
Counter Electrode / Working Electrode (CE/WE) ) (a.k.a. Drive Electrode):
Options (2 per cell required):
No# | Details |
---|---|
a. | Pt disk electrode (Pt disc OD = 0.16 cm, A ~ 0.02 cm2) |
b. | Pt wire coil electrode (3.74 cm L x 0.05 cm OD, A ~ 0.69 cm2) – Standard |
c. | Pt/Nb mesh cylinder electrode (A ~ 7.6 cm2) |
Reference Electrode:
Options (2 per cell required):
No# | Details |
---|---|
a. | Standard: Pseudo-disposable Ag/AgCl gel RE: Low Profile Silver/Silver Chloride Gel (p/n RRPEAGCL) |
b. | Other chemistries available on request |
Application Notes
Application Note:
“Elucidating Effects of Faradaic Imbalance on Vanadium Redox Flow Battery Performance: Experimental Characterization.” Journal of The Electrochemical Society
“Elucidating Effects of Faradaic Imbalance on Vanadium Redox Flow Battery Performance: Experimental Characterization.” – IOP Science
