Single Channel Potentiostats + EIS

Emstat Range

EmStat Range: Small, low cost, research grade grade range of potentiostats.

  • Potential ranges: -3V to +3V or -4V to +4V
  • Current range: 1nA to 10mA or 1nA to 100mA
  • 100mA Max.
  • Compliance voltage: ±5V or ±8V

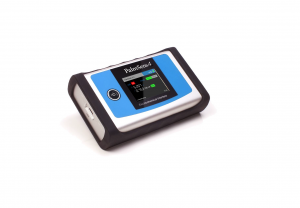

PalmSens4

PalmSens4: USB and battery powered potentiostat. Full colour LCD screen. 4GB of internal storage.

  • Potential ranges: -5V to 5V or -10V to 10V
  • To 30mA Max
  • Current range: 100pA to 10mA
  • FRA: 10uHz to 1MHz or 10uHz to 100kHz
CompactStat.h

CompactStat.h Range: Now 24-bits resolution. High-performance, USB potentiostat/bistat and 3MHz EIS. Low noise femtoamp measurements, 1pA range.

  • 30mA/10V. Options to 200V & 1.25A
  • 1pA current range (extendable to 0.1pA)
  • BiStat & True Linear options
  • EIS 10µHz to 3MHz.
  • 24-bits resolution (0.00001% of Current Range.
pocketSTAT2

pocketSTAT2: Portable potentiostat with full 4-wire EIS.

  • ±30mA / ±10V
  • FRA/EIS: 10µHz-1MHz
  • 4 Electrode Connection
  • Up to 100,000 datapoints/sec
  • NEW optional battery and BlueTooth Module
Sensit Smart: Includes EIS as standard.

Sensit Smart the smallest potentiostat available.

  • EIS to 200 kHz
  • Potential range -1.7 to +2 V
  • Current ranges 100 nA – 5 mA
  • Max ±3 mA
Sensit BT / Sensit BT with Bipot

Sensit BT

Handheld, wireless, dual channel potentiostat.

  • EIS to 200 kHz
  • Potential range -1.7 to +2 V
  • Current ranges 100 nA – 5 mA
  • Max ±3 mA
  • Dual Channel /  Bipot
Vertex Series

Vertex Series: Cost-effective range of highly flexible potentiostats with optional 1MHz EIS and offering current to 10Amps and voltages to 20V.  Includes the entry-level VertexONE (100mA / 20V entry-level potentiostat.)

  • Models to 10Amps and 20V
  • FRA/EIS: 10µHz to 1MHz
  • Bipot Options
  • True Linear Scan Options
VertexC

NEW!  Vertex C Low cost Potentiostat / Bipot

  • Compliance ±350mA / ±13V
  • FRA/EIS: 10µHz-1MHz
  • Optional Bipotentiostat (±35mA / ±10V)
  • Perfect for use with Ivium’s new RRDE
  • WE/CE/RE/S and GND Lead

Vertex.One: Low cost 100mA potentiostat.

  • Current compliance                  ±100mA
  • Maximum output voltage        ±21V
  • Vertex.One.DC                         DC Only
  • Vertex.One.EIS                        10µHz to 1MHz
  • Electrode connections: WE, CE, RE, S (and GND)

IviumStat.h: Ivium’s flagship 5A potentiostat with 8MHz EIS, current ranges down to 1pA for femtoamp measurements and current options up to 50V & 10A.

  • 5V/10V / EIS as standard
  • 24 bits measurement resolution.
  • 1pA Range / 0.00001% of range resolution
  • 50V & 10A options
Ivium XP 20A/10V. 40A /20V

Ivium XP: Integrated High Power Potentiostat.

  • XP40 (±40A/±10V) and
  • XP20 (±20A/20V)
  • Optional FRA/EIS: 10µHz to 500kHz
  • Integrated current interrupt
  • Direct K-type thermocouple input connector

IviumBoost: Series of power boosters for use with selected Ivium potentiostats.  Using boosters as appropriate the Ivium range extends to 128Amps and 200V.

PSM Range of  Frequency Response Analyzer / Impedance Analyzers. 10uHz – 50MHz.  Use with an electronic load for impedance of batteries, fuel cells and other high currents devices.  Photo shows the PSM 3750, 10uHz to 50MHz FRA with IAI accessory for component and materials dielectric measurements.
