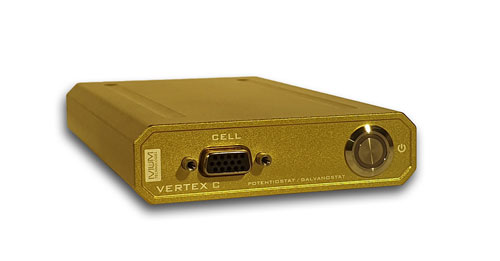

Vertex.C

Potentiostat with Bipot option

  • Compliance ±350mA / ±13V
  • FRA/EIS: 10µHz-1MHz
  • Optional Bipotentiostat (±35mA / ±10V)
  • Perfect for use with Ivium’s new RRDE
  • WE/CE/RE/S and GND Lead

Product description

Low cost solution

The Vertex.C with Bipotentiostat is an all-round potentiostat/galvanostat/ZRA with FRA/EIS with bipotentiostat capability. Its low cost and wide specifications result in a versatile single-channel instrument, and multiple instruments are an attractive alternative to a multi-channel solution. The cell is connected with our standard shielded cell cable via the HD15 cell connector. The WE2 lead of this cable is used when the bipotentiostat is in use. The Vertex.C is capable of all standard electrochemical techniques (including bipotentiostat measurements) and a complete suite of IviumSoft control and data processing software (for Windows based PCs) is included as standard.

Wide application range

The robust design, the wide specification range, the floating operation, and the availability of a wide range of electrochemical techniques makes the Vertex.C ideal for many applications, including:

  • educational
  • basic electrochemistry
  • batteries
  • corrosion
  • sensors
  • RRDE

Expandability

The Vertex.C is supplied with FRA/EIS capability and optional bipotentiostat capability. These are integrate into the instrument (not external modules). The Vertex.C can also be expanded to include True Linear Scan module (contact Ivium/your local distributor for details).

Hardware

  • Automatic current range selection over all available current ranges
  • Automatic variable noise filter and potentiostat/galvanostat stability settings
  • Simultaneous acquisition of current/potential and peripheral signals
  • Real time data display up to 500 pnts/s. Acquisition up to 100,000 pnts/s is stored in instrument memory
  • Applicable scanrates: 1µV/s to 10,000V/s
  • Minimum interval time: 10µs (0.125µs resolution)
  • Result optimisation by automated tuned filters, gain amplifiers and DC-subtraction
  • User selectable floating operation

Software

The Vertex.C is controlled via Ivium’s own IviumSoft. This versatile, yet intuitive software allows instrument control, data management and analysis, peripheral instrument control, etc. IviumSoft can also interface with and be controlled from LabVIEWTM, C++, Delphi, etc. A full suite of IviumSoft is included as standard with each instrument.

NEW Ivium RRDE / RDE

Specifications

System
Current compliance                             ±350mA
Maximum output voltage                   ±13V
Maximum compliance voltage          ±13V
Electrode connections: WE, CE, RE, S (and GND)
With 4mm banana plugs
Potentiostat bandwidth                     >500kHz
Signal acquisition
Dual channel 16bit ADC, 100,000 samples/s

Potentiostat
Applied potential range         ±10V, 0.333mV res.
Applied potential accuracy    0.2%, or 2mV
Current ranges                      ±100pA to ±100mA in 10 decades
Measured current resolution  0.015% of current range, minimum 0.01pA
Measured current accuracy   0.2%

Galvanostat
Applied current resolution         0.033% of applied current range
Applied current accuracy           0.2%
Galvanostatic current ranges   ±10nA to ±100mA
Potential ranges                       ±1mV, ±4mV, ±10mV,±40mV, ±100mV, ±400mV,±1V, ±4V, ±10V
Measured potential resolution  0.03% of potential range, minimum 30nV
Measured potential accuracy  0.2% or 2mV
Impedance Analyser
Frequency range    10µHz to 1MHz
Amplitude    0.15mV to 1.0V, or 0.03% to 100% of current range
Electrometer input impedance  >1000Gohm //<10pF
Input bias current   <20pA
Bandwidth  >5MHz
Special functions  Ohmic drop compensation 2V/current range
Peripheral connections   Analog in/out
±10V input only, 16bit resolution, bandwidth 40kHz

Bipotentiostat (optional)
Current compliance (BiStat)  ±35mA
Applied potential offset  ±2V with 0.06mV resolution wrt. RE or WE

Environmental
Power requirements   100-240V, 45-65Hz, 4VA via 12V supply (included)
Interfacing  USB
Size (w x d x h)  10 x 17 x 2.5cm
Weight   500g
PC requirements   Windows 8/10, with free USB port


Specifications subject to change, Ivium Technologies ©2020
