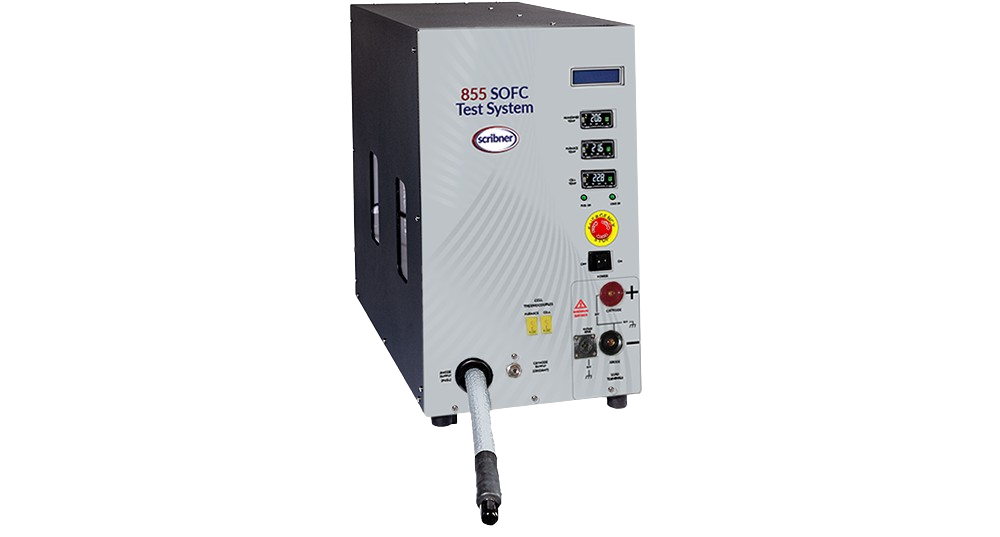

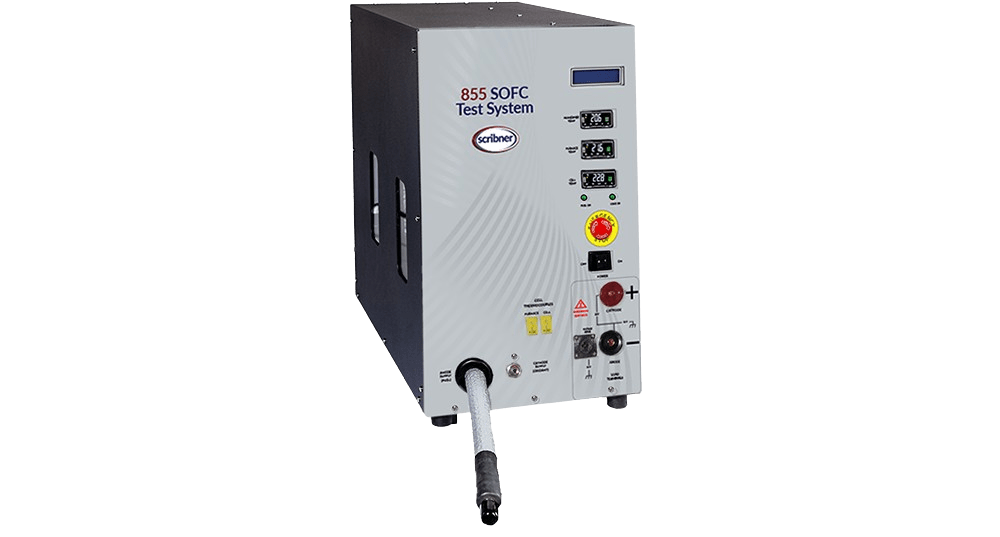

Offering high performance and high accuracy this integrated, turnkey, SOFC test system includes zero-volt operation for lower measurement range. Includes Scribner’s FuelCellTM software and, when ZView (when the EIS option is selected).
Suitable for SOFC Button Cells and Small Planar Cells
Multi Range Electronic load 5/25/50 Amps 100 Watts
FuelCell® software for user-friendly computer-controlled cell operation & experimentation
Anode & Cathode stainless steel ambient temperature humidifiers
Up to five mass flow channels available
Includes Furnace Control hardware with redundant over-temperature protection
Constant current, voltage or power control modes
Constant or stoichiometric-controlled reactant flow rate
Constant current, voltage or power control modes
Automatic hardware shutdown & purge gas for safe, reliable operation
Multifunction front panel alpha-numeric display
High impedance whole cell & reference electrode voltage sense inputs
Cell main terminals & sense inputs tolerant of non-isolated cell
USB Interface
Furnace Control Unit (8″ height x 12″ width x 15″ depth)
