Specialists in Electrochemistry & Materials, Energy & Power


Hand-Portable Potentiostat/Galvanostat/FRA.

(now with optional iBlue for battery and wireless operation)

  • Scan Range ±30mA / ±10V
  • FRA/EIS: 10µHz-1MHz
  • 16 x 6.7 x 1.9 cm
  • Weight 300 g
  • Waterproof: ip44 rating
  •  4 Electrode Connection
  • WE/CE/RE/S and GND Lead
  • Up to 100,000 datapoints/sec
  • All standard electrochemical techniques available
pocketstat2 hand-held potentiostat with optional bluetooth
iBlue + pocketSTAT2 End-view

Product description

The pocketSTAT2 has the size and weight of a smart phone. It is controlled via a USB connection from any netbook, laptop or PC that is Windows operated.

Key specifications
– Size: 16 x 6.7 x 1.9cm
– Weight: 300g
– Scan range: ±10V/±30mA
– 4 Electrode connection: WE/CE/RE/S and GND lead
– Max. acquisition rate: 100,000 pnts/s

Rugged design
The pocketSTAT2 has a housing made of strong, yet lightweight aluminium. The instrument enclosure is waterproof and complies with the ip44 rating.



  • Automatic current range selection: 100pA to 10mA/1mV to 10V
  • Automatic variable noise filter and potentiostat/galvanostat stability settings
  • Real time data up to 500 pnts/s. Acquisition up to 100,000 pnts/s is stored in instrument memory
  • Applicable scanrates: 1µV/s to 10,000V/s
  • Minimum interval time: 10µs (0.125µs resolution)
  • Result optimalisation by automated tuned filters, gain amplifiers and DC-subtraction

The pocketSTAT2 is controlled via Ivium’s own IviumSoft. This versatile, yet intuitive software package allows instrument control, data management and analysis, etc. IviumSoft can also interface with and be controlled from LabVIEWTM, C++, Delphi, etc. A full suite of IviumSoft is included with each instrument as standard.


Bluetooth & battery module

 Plug & Play Bluetooth 5.0 connection

 No Bluetooth facilty on PC required

 Battery pack gives up to 5 hours of continuous operation

 Rechargable from computer USB

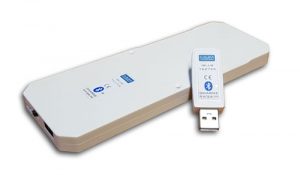

iBlue Battery Pack & BlueTooth Dongle


The iBlue is a battery pack with an integrated Bluetooth connection module. The iBlue is connected to the instrument via a USB connection, and by simply inserting the provided Bluetooth dongle into a free USB port on your PC/laptop, you can have wireless communication with your potentiostat. No exisiting Bluetooth capability on your PC/laptop is required.

For communication, the iBlue is suitable for any single-channel instrument. The integrated battery pack is suitable for powering our pocketSTAT2 instrument only.

The iBlue module is the connection link between the Ivium potentiostat and your computer. It offers up to 5 hours of continuous operation on one battery charge.


  • Connection via iBlue Bluetooth dongle
  • No Bluetooth facility on the PC is required for use
  • Bluetooth 5.0: high speed, distance and throughput
  • Wireless connection access anywhere: ideal for connection in fume hood or glove box


  • USB or mains power chargeable
  • Up to 5 hours of continuous operation on one charge
