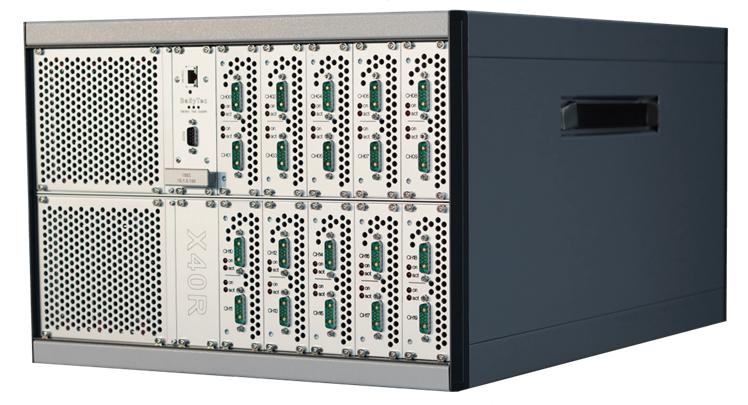

XCTS Mk2 Series

The BaSyTec XCTS series is designed for single cells with a maximum voltage of 6 V and currents up to 40, 60 or 80A. The amplifiers use switched technology which results in low heat generation, compact design and high overall energy efficiency. In parallel mode (optional) up to 800A can be reached. The XCTS has automatic and dynamic current range switching.

The XCTS cell test and formation system from BaSyTec is a cost effective, modular solution for the testing and formation of large numbers of cells. Parallel operation to 400A. Energy recovery / mains regeneration reduces heat, size and running costs.

Like all BaSyTec systems the system hardware is programmed using BaSyTest software. Once the program is running the PC can be disconnected (intentionally or not) and the system will continue to operate and collect data using internal buffers on each channel. The system can run for prolonged periods in this way and is only limited by the amount of data being collected. All data is automatically synchronised back to the PC once a connection is re-established.
