Specialists in Electrochemistry & Materials, Energy & Power

Ivium Technologies

Ivium offers an unrivalled range of integrated potentiostats/impedance analysers. From ultra low noise, research-grade instruments through multichannel modular systems, to pocket-portable units. Femtoamps to beyond 500Amps, Ivium addresses almost every application.

Listed below are a selection of Ivium’s Single channel potentiostats, various solutions for multichannel experiments, whether multiplexed or simultaneous multi-channel and a representative selection of their accessories and boosters (please contact us for more if you do not see what you want listed below.)

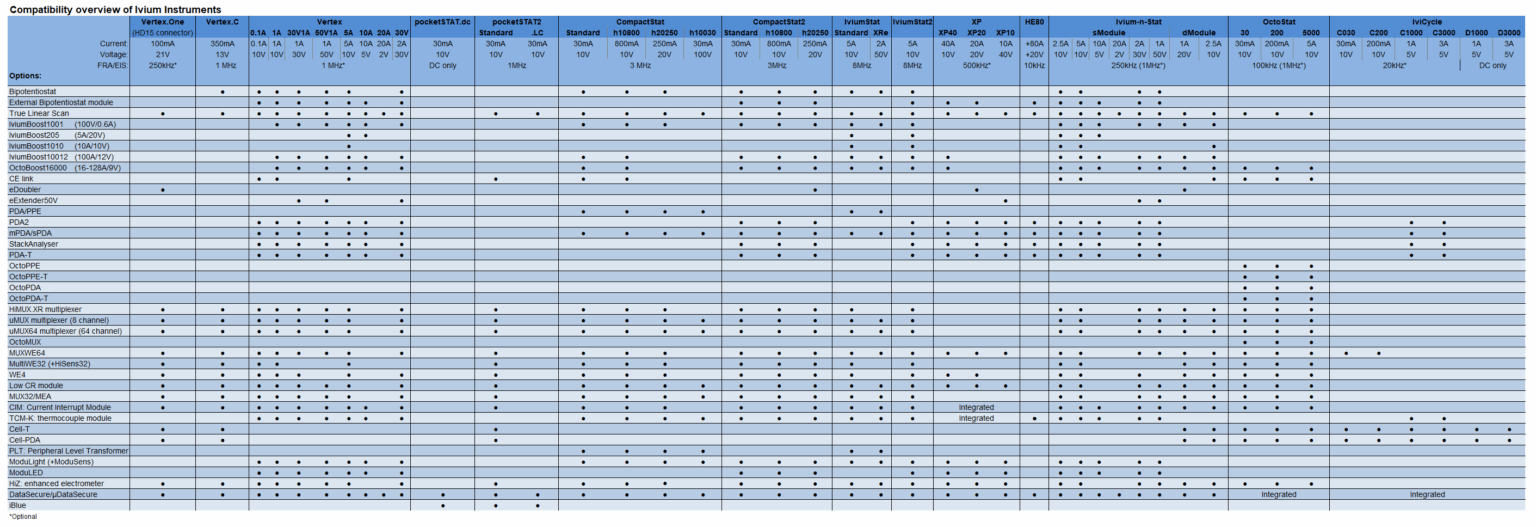

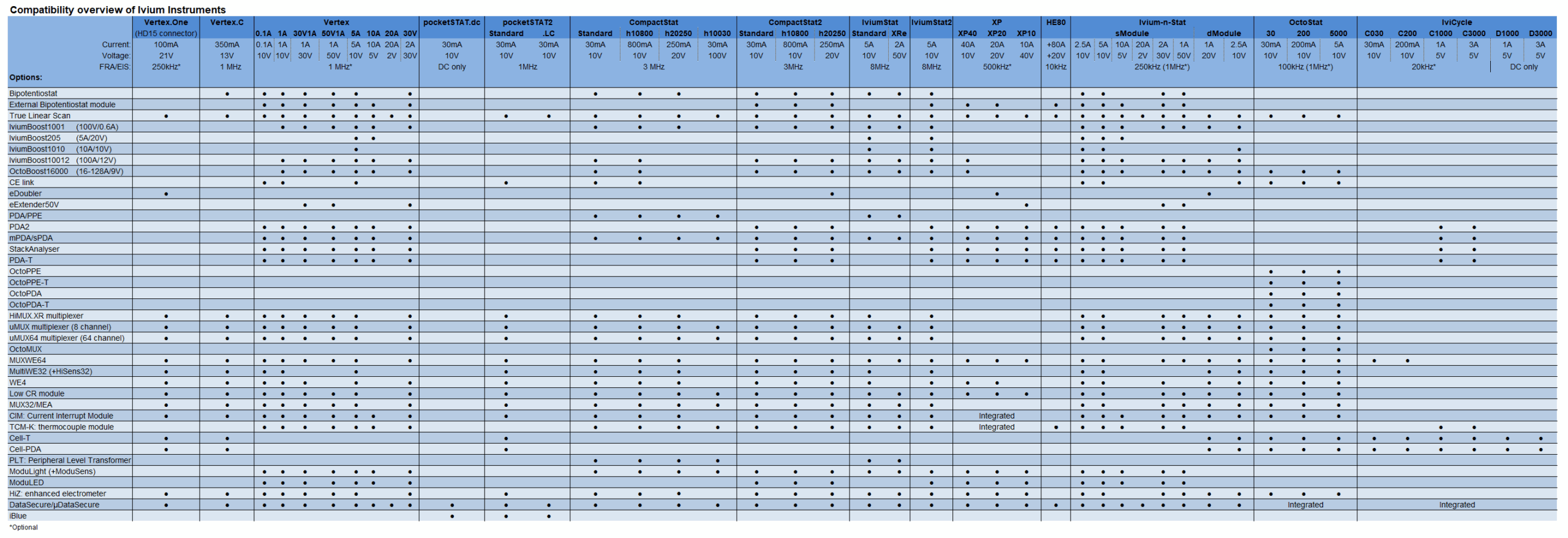

See also the Compatibility Overview showing the compatibility of Ivium’s instruments with the various accessories and modules.

Ivium Single Channel Potentiostats

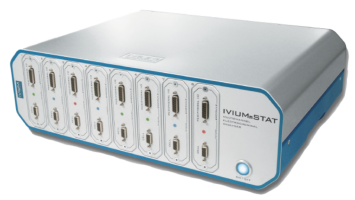

IviumStat Range

The IviumStat2 range extends beyond 5A with an unbeatable combination of accuracy, measurement speed and memory depth from sub-pA to 500A.

CompactStat Range

Ivium’s redesigned CompactStat2.h offers an unbeatable combination of speed (2 million data points / sec), data capture (1 million data points) and low leakage (20fA) available in a commercial potentiostat today.

Vertex Range

Ivium’s Vertex potentiostats range offers excellent performance, a broad range of capabilities and great value for money. Currents range from picoamps to 10’s Amps and there are a range of boosters and modules to address most applications.

Ivium XP High Power Potentiostats

The Ivium XP range addresses applications requiring a high current compliance such as electrolyser, battery and fuel cell applications. The range extends to ±40A and ±20V in 3 models, the XP10, XP20, and XP40.

Ivium HE80

Single or four quadrant 20V, 80A potentiostat with integrated FRA/EIS and designed with electrolysers/hydrogen generation, battery cycling, and electrodeposition in mind.

pocketSTAT2 and iBlue

Handheld potentiostat
Compliance ±30mA /±10V
Current Ranges ±100pA to ±100mA
EIS/FRA 10µHz – 1MHz.
Optional Battery & BlueTooth

Vertex.One

A truly low-cost, entry-level potentiostat from Ivium, the Vertex.One has been designed with low cost in mind (and hand-portable too!)

Compliance ±100mA /±21V
Current Ranges ±100pA to ±100mA
Optional EIS/FRA 10µHz – 250kHz
Optional True Linear Scan

Vertex.C

Compliance ±350mA /±13V
Current Ranges ±100pA to ±100mA
EIS/FRA 10µHz – 1MHz
Optional Bipotentiostat
Optional True Linear Scan

OctoStat Series

8-channel Cycler/Potentiostat/Galvanostat/ZRA, stackable to 128 channels each with independent FRA/EIS. To 15A/128A with OctoBOOST. 30mA, 200mA, 5A versions. Runs and saves data without pc controller.

Ivium Multichannel Solutions

IviCycle C16000

Regenerative battery cycler offers 16-channels with ±16A per channel and ±5V (or -1 to +9V). The regenerative design minimises heat dissipation, energy consumption and space required to house the system.

Ivium-n-Stat Modular Potentiostat System

To 8 modules/16 channels per frame (stackable up to 64 channels)
Mix and match modules for maximum versatility
Independent FRA/EIS per channel
Potentiostat/Galvanostat/ZRA

OctoStat Series

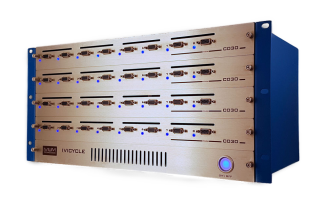

IviCycle

32 independent potentiostat / cycler channels each with impedance / EIS. Modules from 30mA to 3A and to ±10V. Systems can be combined to 256 channels.

HiMUX.XR and uMUX

8 independent switching channels
Stackable to 64 channels
Optional electrometer-per-channel for seamless switching
5-electrode switching per channel
Requires a compatible Ivium potentiostat

Peripheral Port Interfacing (PPE & PDA)

Works with IviumStat or CompactStat to provide analogue and/or digital input and output connections via the Peripheral Port. Grounded or differential inputs.

Ivium uMUX64

64 independent switching channels
Relay switching
Compliance ±5A and ±50V
5-electrode switching per channel
Requires a compatible Ivium potentiostat

Ivium MultiWE32

Controls up to 32 WE’s simultaneously vs 1CE and 1RE
Designed for low current applications
Stackable to 256 WEsl
Requires a compatible Ivium potentiostat

StackAnalyser

Adds simultaneous voltage and EIS measurements to your Ivium potentiostat – great for measuring battery and stack cells simultaneously up to 100kHz in addition to the primary signal.

Accessories and Boosters

OctoBoost16000

8-channel booster with EIS over 10µHz-10kHz and 16A per channel, parallelable up to 128A. For use with OctoStat or Ivium single channel potentiostats used either singly or with multiple single channel instruments.

IviumBoost Family of Power Boosters

Add capability to your Ivium potentiostat to meet demands of your expanding research. Models available covering a range up to 500A and 100V.

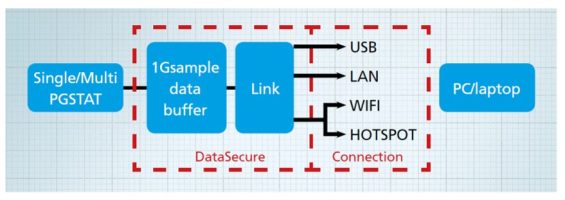

DataSecure & uDataSecure

Never lose data again! The DataSecure module sits between potentiostat and PC to store measurement data in hardware for recovery if pc or Windows crashes. With optional WiFi, Lan, and Web interface.

IviumSoft

Free software, this provides a powerful GUI to Ivium instruments based upon Electrochemistry techniques. IviumSoft enables the unmatched flexibility, performance and analytical capabilities of Ivium hardware.

Ivium CE Link

CE Link enables combination of multiple potentiostats to, for example, create a full-capability bipotentiostat (or full power multipotentiostat) or to remove the need for floating potentiostats in some setups (eg Devanathan) and so avoid current leakage.

Ivium Low Current (LC) Module

Adds 3 “real” current ranges to an Ivium potentiostat. “Real” meaning not achieved by software or amplification and so does not amplify noise – just the desired signal!
