Specialists in Electrochemistry & Materials, Energy & Power

Potentiostats & EIS

We offer a comprehensive range of potentiostats both single- and multi-channel, with and without EIS, from sub-picoamps to high power 500A systems. Applications range from sensors and bio applications up to high power battery and fuel cell research and test.

If you don’t see what you seek on our website please contact our team where one of our technical specialists will be happy to discuss your application and share details of the latest, and upcoming applicable solutions.

Single Channel Potentiostats

IviumStat Range

NEW! IviumStat2.h

NEW for 2025! Ivium’s redesigned IviumStat2. adds an unbeatable combination of accuracy, speed and data capture to the IviumStat range. The IviumStat range now covers pA to 500A+ and nV to 100V but with speed, memory, and accuracy of the CompactStat. And software-selectable floating operation too!

NEW – CompactStat2.h

NEW! CompactStat2.h

NEW for 2025! Ivium’s redesigned CompactStat2.h offers an unbeatable combination of speed (2 million data points / sec), data capture (1 million data points) and low leakage (20fA) available in a commercial potentostat today.

Vertex.One

VertexOne low cost potentiostat with 100mA and 22V capability

A truly low-cost, entry-level potentiostat from Ivium, the Vertex.One has been designed with low cost in mind (and hand-portable too!)

  • Compliance  ±100mA /±21V
  • Current Ranges ±100pA to ±100mA
  • Optional EIS/FRA 10µHz – 250kHz
  • Optional True Linear Scan

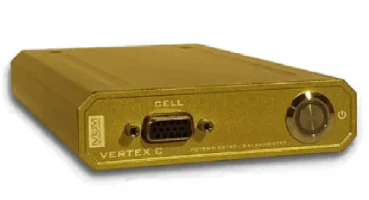

Vertex.C

VertexC low cost 350mA potentiostat with optional bipotentiostat
  • Compliance  ±350mA /±13V
  • Current Ranges ±100pA to ±100mA
  • EIS/FRA 10µHz – 1MHz
  • Optional Bipotentiostat
  • Optional True Linear Scan

Ivium XP High Power Potentiostats

Ivium XP range of high power potenstiostats

The Ivium XP range addresses applications requiring a high current compliance such as electrolyser, battery and fuel cell applications. The range extends to ±40A and ±20V in 3 models, the XP10, XP20, and XP40.

pocketSTAT2 and iBlue

pocketstat2 hand-held potentiostat with optional bluetooth
  • Handheld potentiostat
  • Compliance  ±30mA /±10V
  • Current Ranges ±100pA to ±100mA
  • EIS/FRA 10µHz – 1MHz.
  • Optional Battery & BlueTooth

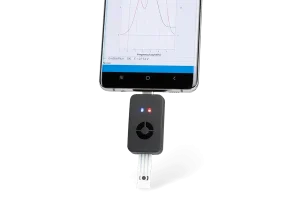

Sensit Smart

Sensit Smart with Smartphone and PSTouch Software

The Sensit Smart is the world smallest ready-to-go potentiostat available on the market. The Sensit Smart can be directly inserted in a smartphone or tablet and controlled via the Android app PStouch.

Sensit BT

Sensit BT-SNS and Sensit BT - SPE

The Sensit BT potentiostat with BlueTooth connects wirelessly to your smartphone or tablet and is controlled via the Android app PStouch.

Ivium HE80 – 20V/80A Potentiostat

HE80 20V/80A Potentiostat for Electrolyser, Battery and Electrodeposition

Single or four quadrant 20V, 80A potentiostat with integrated FRA/EIS and designed with electrolysers/hydrogen generation, battery cycling, and electrodeposition in mind.

Vertex Range

Vertex range of potentiostats

Ivium’s Vertex potentiostats range offers excellent performance, a broad range of capabilities and great value for money. Currents range from picoamps to 10’s Amps and there are a range of boosters and modules to address most applications.

Emstat4 Series

Emstat4s with galvanostat and optional EIS

Range of Matchbox-sized potentiostat with options for 4-electrode measurements, EIS and up to 200mA.

885 Fuel Cell Potentiostat

Model 885 Fuel Cell Potentiostat

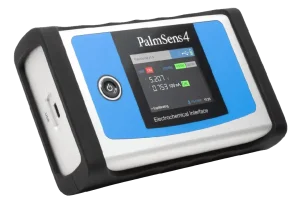

PalmSens4

palmsens4-1024x1024

A USB and battery powered Potentiostat, Galvanostat, and optional Frequency Response Analyser (FRA) with up to -10V to 10V & 100 pA to 10 mA ranges.

PalmSens Nexus

Nexus stacked as 3-potentiostat multipotentiostat system

The NEW (for Q2 2025) Nexus 1A potentiostat from PalmSens combines leading edge performance with 5-electrode measurements (optionally 6 via an additional WE) and is stackable (with the ability to hardware-synchronise multiple channels).

OrigaFlex Multichannel Potentiostat System

Origaflex example configuration

Origalys’s Origaflex is a modular potentiostat system with a range of potentiostat modules up to ±10A and with compliance voltage of ±20V (±15V Applied). Applications include electrochemistry and battery research.

OGSxxx Range of Mini-Potentiostats

ogs050-450x450

Origalys’s new OGSxxx range of compact, lightweight potentiostats breaks new ground in value for money.

Multi-Channel Potentiostat Solutions

PalmSens Nexus

Nexus stacked as 3-potentiostat multipotentiostat system

The NEW (for Q2 2025) Nexus 1A potentiostat from PalmSens combines leading edge performance with 5-electrode measurements (optionally 6 via an additional WE) and is stackable (with the ability to hardware-synchronise multiple channels).

OrigaFlex Multichannel Potentiostat System

Origaflex example configuration

Origalys’s Origaflex is a modular potentiostat system with a range of potentiostat modules up to ±10A and with compliance voltage of ±20V (±15V Applied). Applications include electrochemistry and battery research.

Ivium MultiWE32

multiwe32-1024x1024
  • Controls up to 32 WE’s simultaneously vs 1CE and 1RE
  • Designed for low current applications
  • Stackable to 256 WEsl
  • Requires a compatible Ivium potentiostat

Ivium uMUX64

Image showing the Ivium uMUX64, 64-way multiplexer
  • 64 independent switching channels
  • Relay switching
  • Compliance ±5A and ±50V
  • 5-electrode switching per channel
  • Requires a compatible Ivium potentiostat

Peripheral Port Interfacing (PPE & PDA)

PPE (Peripheral Port Extender) and PDA (Peripheral Differential Amplifier) each add 8 inputs to certain Ivium potentiostats (notably CompactStat and IviumStat). PPE is a straight-through connector system; PDA include input buffer, and high impedance, differential inputs

Works with IviumStat or CompactStat to provide analogue and/or digital input and output connections via the Peripheral Port. Grounded or differential inputs.

HiMUX.XR and uMUX

himuxxr-1024x1024
  • 8 independent switching channels
  • Stackable to 64 channels
  • Optional electrometer-per-channel for seamless switching
  • 5-electrode switching per channel
  • Requires a compatible Ivium potentiostat

EmStatMUX8-R2

PalmSens MUX8-R2 8-way multiplexer
  • 8-way multiplexer
  • stack up to 128 cells
  • 4 different electrode or sensor configurations
  • Maximum current 70mA

PalmSens MultiEmstat4

multiemstat4HR high range model

Compact Potentiostat, Galvanostat, and optional Frequency Response Analyser (FRA) for Electrochemical Impedance Spectroscopy (EIS) with 4, 8 or 12 channels.  Options to 200mA.  Each channel is essentially an Emstat4S.

MultiPalmSens4

MultiPalmSens4 with 10 potentiostat plugins

Flexible multi-channel potentiostat, galvanostat and impedance analyzer with optional bipotentiostat. Each module is essentially a PalmSens4.

IviCycle

IviCycle range of 32 channel potentiostat and battery cycler. Milliamps to Amps. Modular.
  • Multi-channel battery test system
  • Selectable modules from 30mA to 3A
  • Optional FRA/EIS: 10µHz-20kHz on each channel for simultaneous testing
  • Potentiostat/Galvanostat/ZRA

OctoStat Series

OctoStat30
  • 8-channel Potentiostat/Galvanostat/ZRA
  • Stackable to128 channels
  • Independent FRA/EIS per channel
  • Runs without pc controller
  • No data loss on pc disconnect

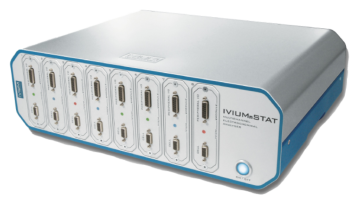

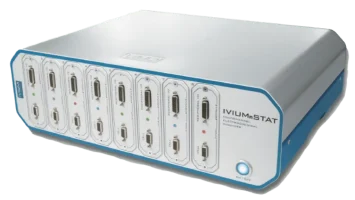

Ivium-n-Stat Modular Potentiostat System

Ivium-n-Stat with 8 s-Modules Plugged-In
  • To 8 modules/16 channels per frame (stackable up to 64 channels)
  • Mix and match modules for maximum versatility
  • Independent FRA/EIS per channel
  • Potentiostat/Galvanostat/ZRA
