Electrochemistry, Fuel Cell & Battery Research Test Solutions

IviumSoft: One Software to Control All Ivium Instruments

Ivium Potentiostats are controlled by IviumSoftTM  Electrochemistry Software. Developed by Ivium engineers, IviumSoft is feature-rich, yet intuitive. It is used for both data acquisition and data analysis, and controls the potentiostat for a broad range of electrochemical techniques.  IviumSoft also includes a wide range of data evaluation and analysis tools.



IviumSoft is easy to use for electrochemical newcomers and has the power to support the advanced user.  IviumSoft accomplishes this seemingly counterintuitive goal with two modes of operation: "Basic" and "Advanced" modes are available for experimental setup.  "Basic" mode requires minimum information from the user, "Advanced" mode gives the expert user complete control of the Potentiostat.  The simplicity of "Basic" mode and the versatility of "Advanced" mode are the key to the appeal of IviumSoft to a wide spectrum of users

Sweep Techniques

  • Linear sweep & cyclic voltammetry
  • Potentiostatic or Galvanostatic
  • Staircase or Current Averaging
  • True Linear Scan (optional)
  • Scan rate: 1uV/s to 10,000 V/s
  • Ohmic drop connection
  • Simultaneous recording of WE2 (Bipotentiostat optional)
  • Simultaenous data acquisition from peripheral port
  • Alpha: control of digital step sample point
  • Dynamic vertexes
Sweep techniques

Transients

  • Chronoamperometry
  • Chronopotentiometry
  • Mixed Mode
  • ECN: Electrochemical Noise
    • Noise measurements are performed with 2 identical working electrodes and a reference electrode.
Transients

Analysis

  • Graphical equivalent circuit editor for fitting impedance data
  • Corrosion rate
  • Electrochemical noise
  • Electrolysis report
  • Solar cell report
  • Peakfind
  • Find levels
  • Curve fit
graphical equivalent

Special Functions

  • Graphic presentation & tools
  • Batch mode for automated sequences
  • Measuring small signals at high sensitivity
graphic rep

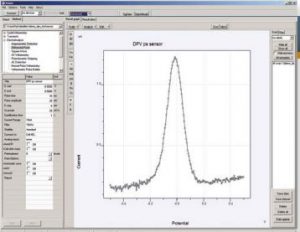

Electroanalysis

  • Amperometric detection
  • Differential pulse
  • Square wave
  • AC voltammetry
  • Potentiometric stripping
  • AC detection
  • Normal pulse voltammetry
  • Voltammetric pulse builder: build your own pulse technique
electroanalysis

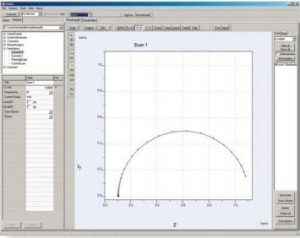

Impedance Measurements

  • Single sine/multi sine
  • Combined frequency and potential scans: Mott-Schottky plots
  • Up to 255 frequencies per scan
  • Dual 16 bit ADC with 1-10^4 postgain amplifiers
  • Automatically tuned filters
  • DC subtraction: analog or 16 bit offset-DACs
  • Integrated data analysis
Impedance

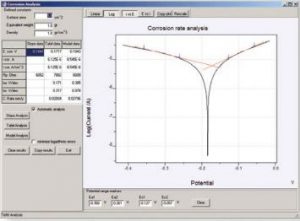

Corrosion Techniques

  • E oc monitor
  • Polarisation Resistance
  • Tafel Plot
  • Potentiodynamic
  • Cyclic polarisation
  • Galvanic corrosion
  • Corrosion rate monitor
corrosion
