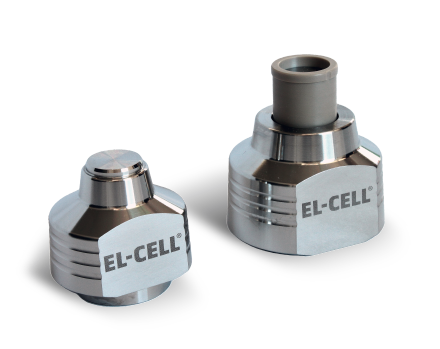

   ECC-CellLoad

Electrode alignment and assembly tool

When building full cells with thin Celgard type separators, the concentric alignment of the two electrodes – with the oversized separator in between – is the key for electrochemical performance and life time. The ECC-CellLoad is the tool to get that done easily. This tool is suitable for test cells ECC-Std and ECC-Press-Air(-DL).

ECC-CellLoad features

Highly precise concentric alignment of the two electrodes

Suitable for electrodes of 18 mm diameter

Easy handling

Suitable for ECC-Std and ECC-Press-Air-(DL)

Technical data
