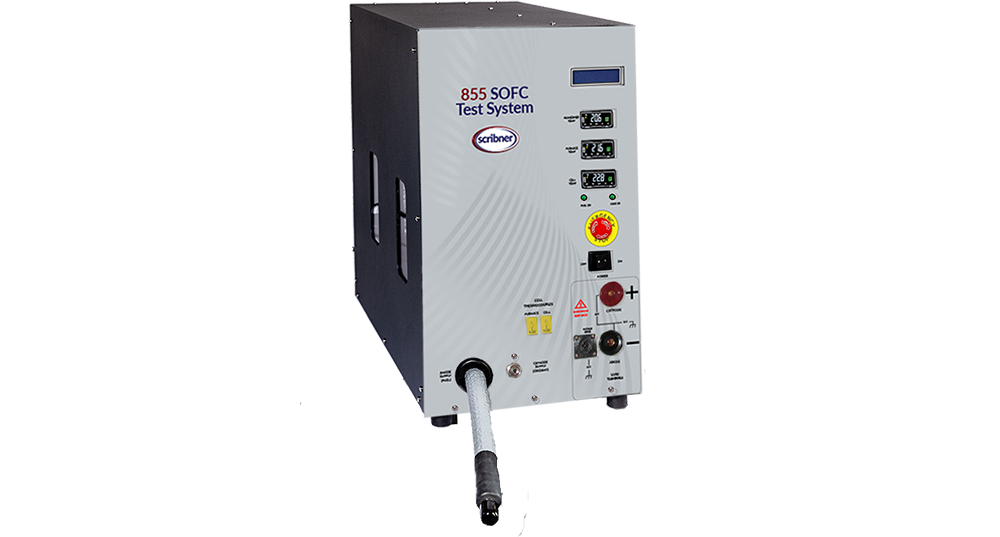

855 SOFC Test System

Offering high performance and high accuracy this integrated, turnkey, SOFC test system includes zero-volt operation for lower measurement range. Includes Scribner’s FuelCellTM software and, when ZView (when the EIS option is selected).

  • Suitable for SOFC Button Cells and Small Planar Cells
  • Multi Range Electronic load 5/25/50 Amps 100 Watts
  • FuelCell® software for user-friendly computer-controlled cell operation & experimentation
  • Anode & Cathode stainless steel ambient temperature humidifiers
  • Up to five mass flow channels available
  • Includes Furnace Control hardware with redundant over-temperature protection
  • Constant current, voltage or power control modes
  • Constant or stoichiometric-controlled reactant flow rate
  • Constant current, voltage or power control modes
  • Automatic hardware shutdown & purge gas for safe, reliable operation
  • Multifunction front panel alpha-numeric display
  • High impedance whole cell & reference electrode voltage sense inputs
  • Cell main terminals & sense inputs tolerant of non-isolated cell
  • USB Interface
  • Furnace Control Unit (8″ height x 12″ width x 15″ depth)
